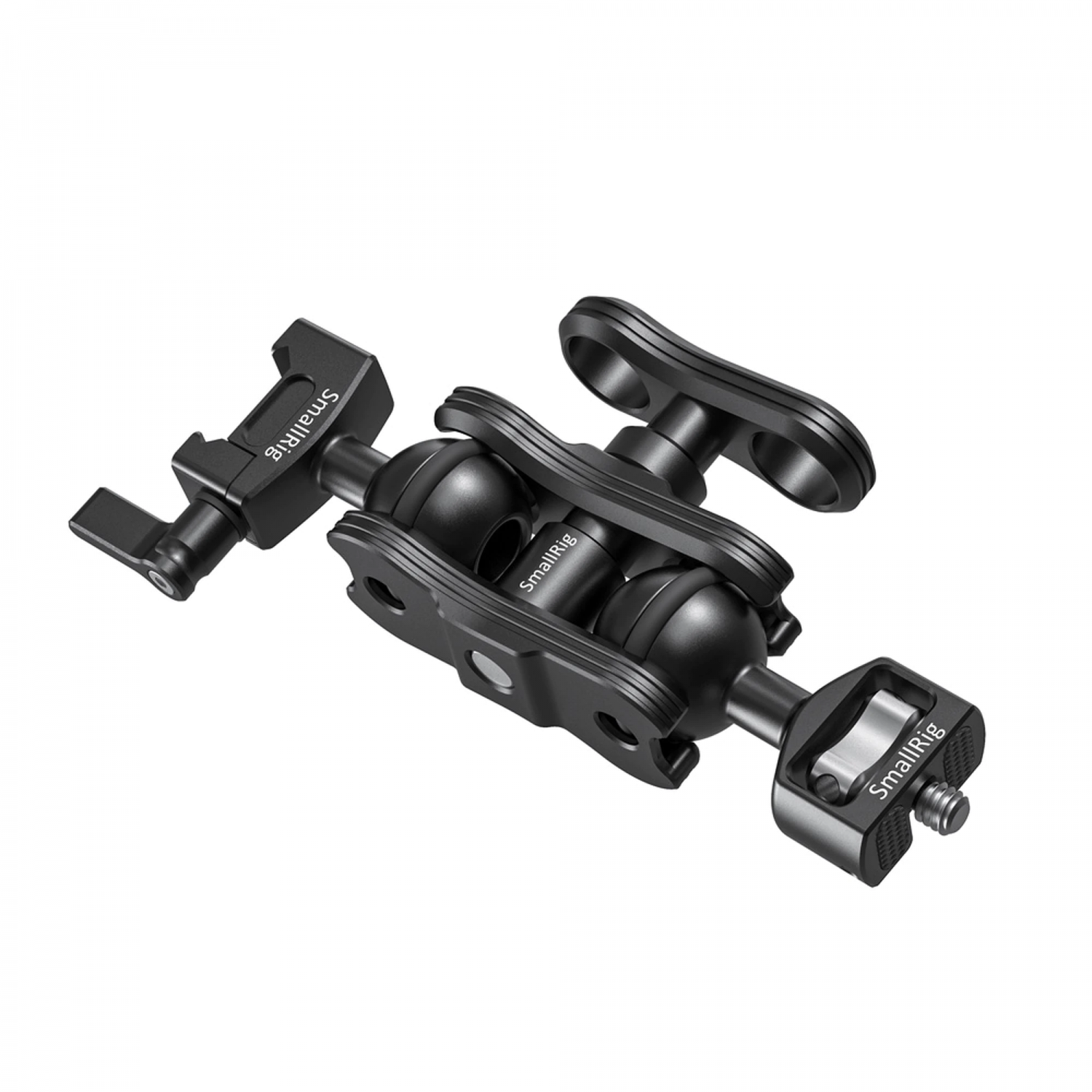

SmallRig Articulating Arm with Screw Ballhead and NATO Clamp Ballhead 2071B

SmallRig Articulating Arm 2071 includes a ballhead with 1/4’’ screw, a ballhead with NATO clamp and a ballhead clamp. It enables additional attachment for your options as per your needs and different shooting scenarios. For example, it could attach plate with 1/4’’-20 threaded holes or cage with 1/4’’-20 threaded holes on the one end via ballhead with 1/4’’ screw, while it could also attach monitor cage with NATO rail with on the other end via ballhead with NATO clamp.

It could attach cage with NATO rail with on the other end via ballhead with NATO clamp, while it could attach monitor cage on the other end via ballhead with 1/4’’ screw. It features a thumb screw on each end to lock the device manually. The monitor mounted on it could be adjusted in different positions and angles via both the ballhead and ballhead clamp, and a single wingnut is applied to lock the double ballhead tight directly. It is equipped with O rings to increase the friction with the ballhead clamp and prevent scratches and rubber cushions to prevent the monitor from scratches.

Key Features:
1. It is made up of a ballhead with 1/4’’ screw, a ballhead with NATO clamp and a ballhead clamp.
2. It could attach plate with 1/4’’-20 threaded holes, such as Top Plate 1853, Side Plate 1854 or cage with 1/4’’-20 threaded holes, like a6500 Cage 1889 on the one end via ballhead with 1/4’’ screw, while it could also attach monitor with NATO rail with on the other end via ballhead with NATO clamp.
3. It could attach cage with NATO rail with on the other end via ballhead with NATO clamp, while it could attach monitor cage on the other end via ballhead with 1/4’’ screw.
4. It features quick release and attachment and could be slid to get the balance of the whole kit.
5. The monitor mounted on it could be adjusted in different positions and angles via both the ballhead and ballhead clamp.
6. A single wingnut is applied to lock the double ballhead tight directly, and thumb screws on both ends are utilized to lock the devices manually and a spared hex spanner is ready to lock it tighter.
7. Its max load is 1.5kg.

Compatibility:
Universal

Package Includes:
1 x Ballhead with 1/4’’ Screw
1 x Ballhead with NATO Clamp
1 x Ballhead Clamp
1 x Hex Spanner

Product Dimensions: 140x26x52 mm
Net Weight: 147g
Package Size: 155x80x40mm
Material(s): Aluminum Alloy/Stainless Steel
